Bainbridge High School Water Tower
Overview
A state of the art 1500 students high school was built 5 miles outside the City Limits with no available utilities nearby to serve the school. York & Associates Engineering, Inc. was honored to be selected for the design of water and sanitary sewer extensions to serve the school and future growth in the annexed area.

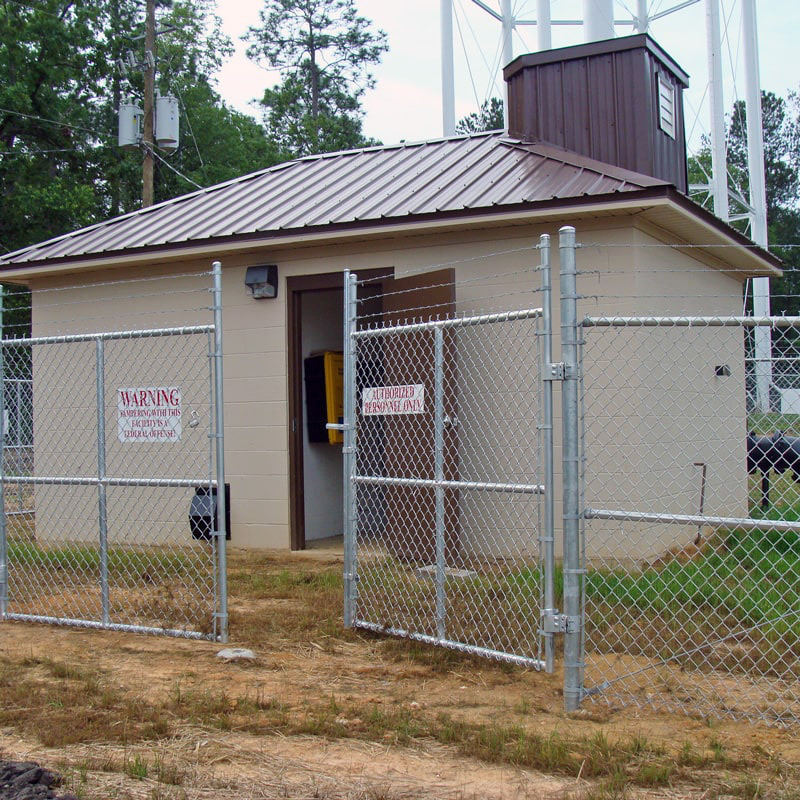

Bainbridge High School Well House
Bainbridge High School Well House
Bainbridge High School Well Tank RFC
Bainbridge High School Well Tank RFC

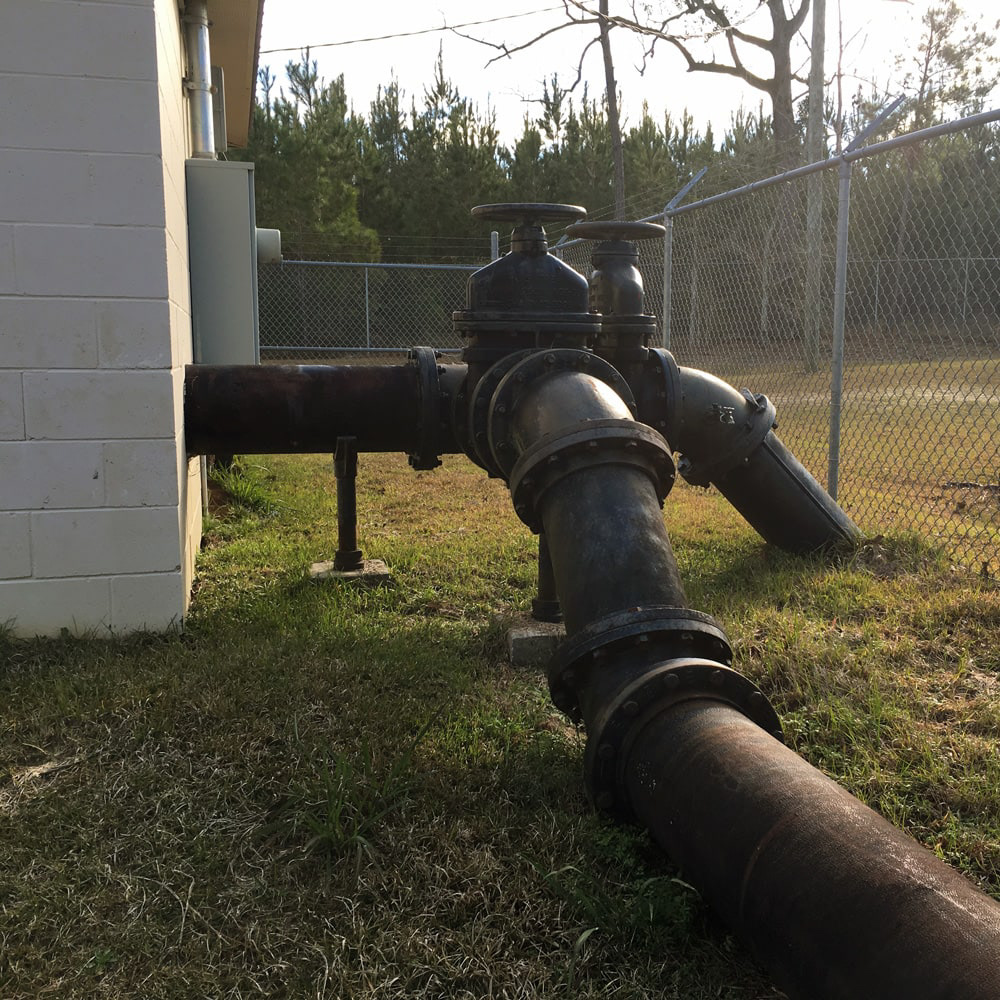

Bainbridge High School Piping
Bainbridge High School Piping

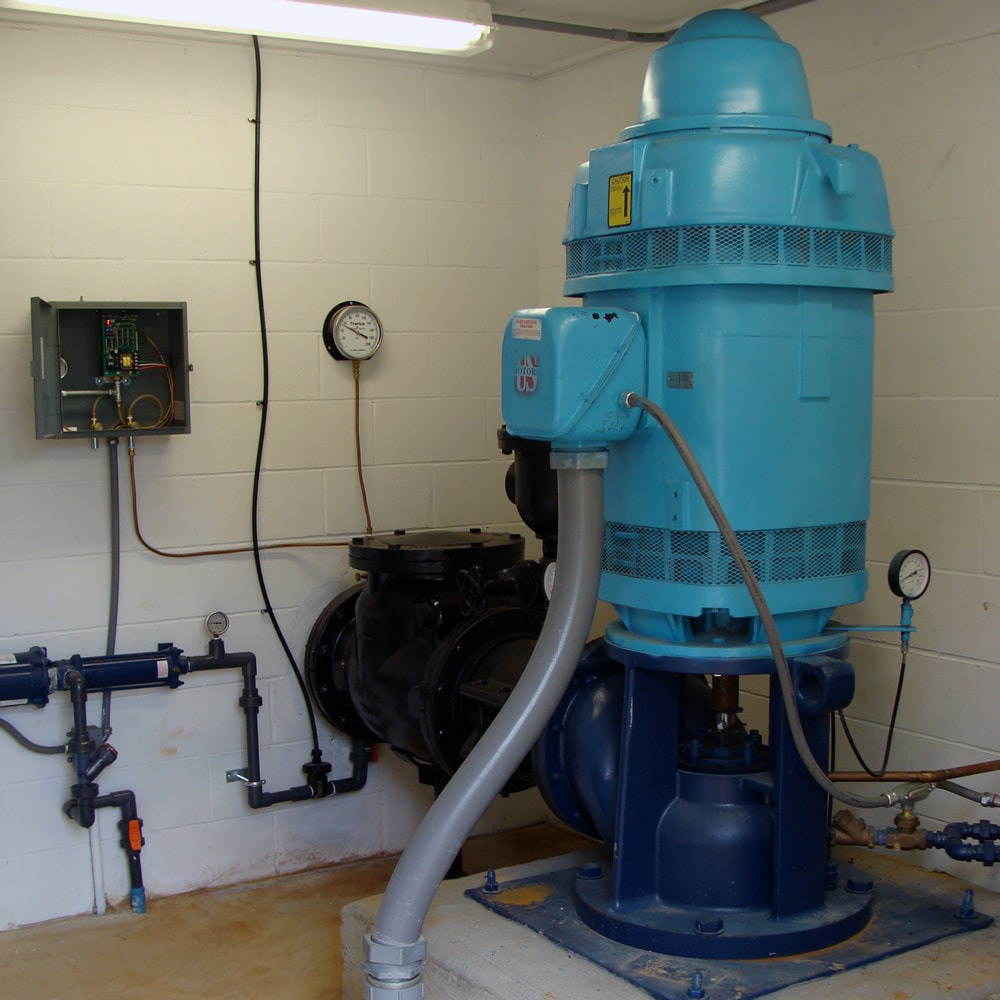

Bainbridge High School Well
Bainbridge High School Well

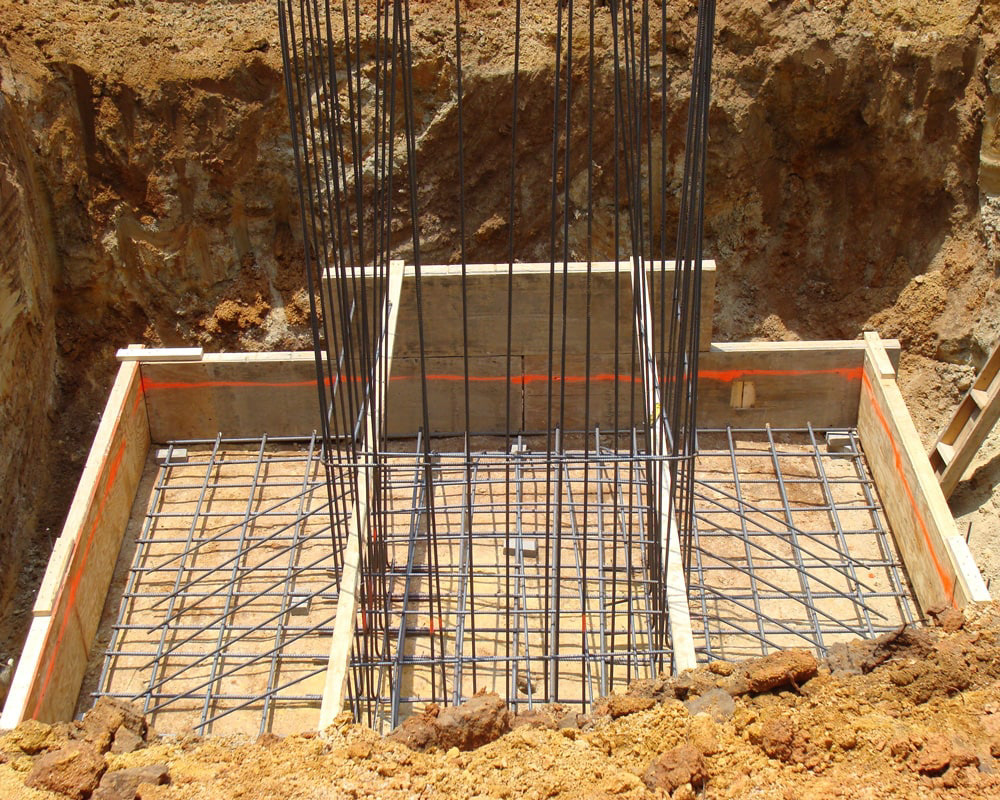

Bainbridge High School Water Tank During Construction
Bainbridge High School Water Tank During Construction

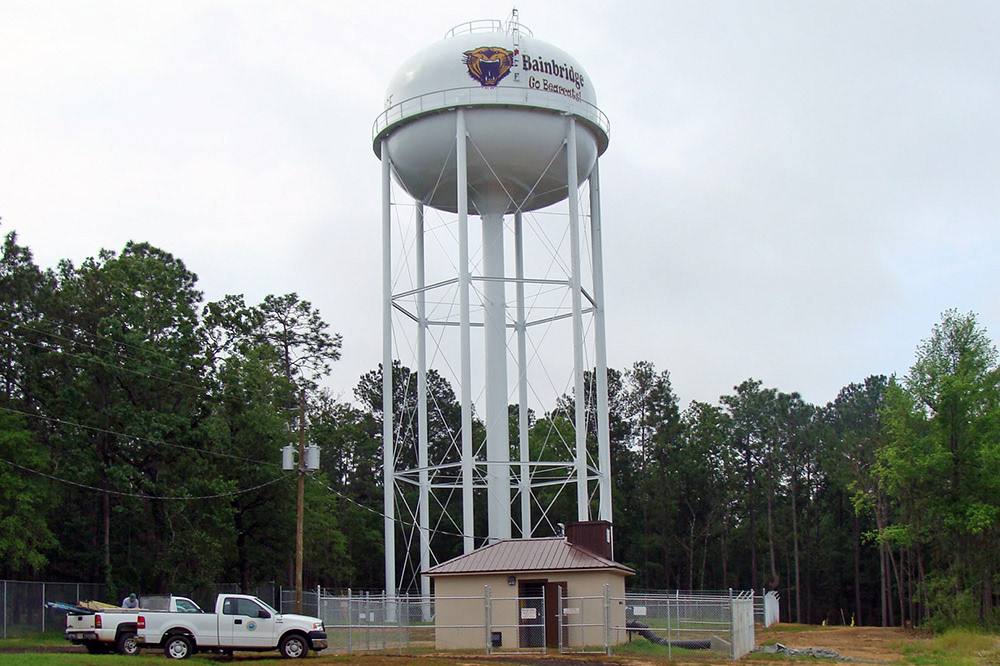

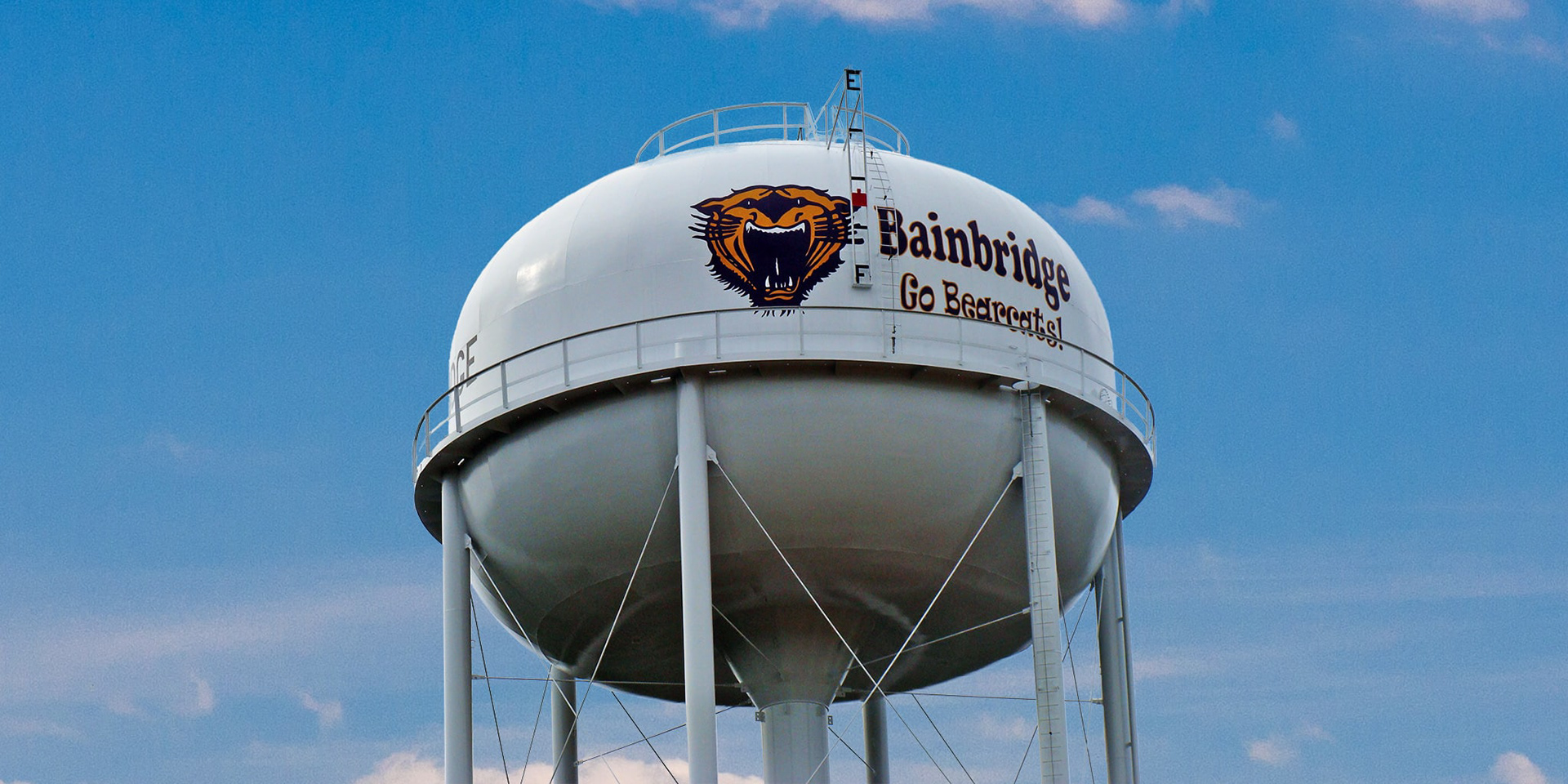

Bainbridge High School Water Tank Completion
Bainbridge High School Water Tank Completion
Project Summary
● 400,000 gallons multi-column elevated water tower
● 500 feet deep water well
● A well house with fluoride and chlorination equipment
● A mile of 12-inch diameter gravity sewer line
● A sewer pump station
● 3 miles of 10-inch Forcemain along the U.S. Highway 84
● 0.3 miles of 12-inch HDPE Directional bore within the highway right-of-way
Services Provided
● Surveying (boundary and topographic)
● Construction cost estimating
● Application for a permit to operate Public Water System
● Design services
● Construction plans
● Permitting services (GDOT, NPDES, EPD)
● Contract documents & technical specifications
● Bidding services
● Construction administration & monitoring
